DisplayStack for Archicad: Layer Intersection Group and Junction Order

Aug 22, 2026 / ONIZU

DisplayStack v1.3.0 brings more element-intersection information into the palette and improves its readability in Archicad's dark interface.

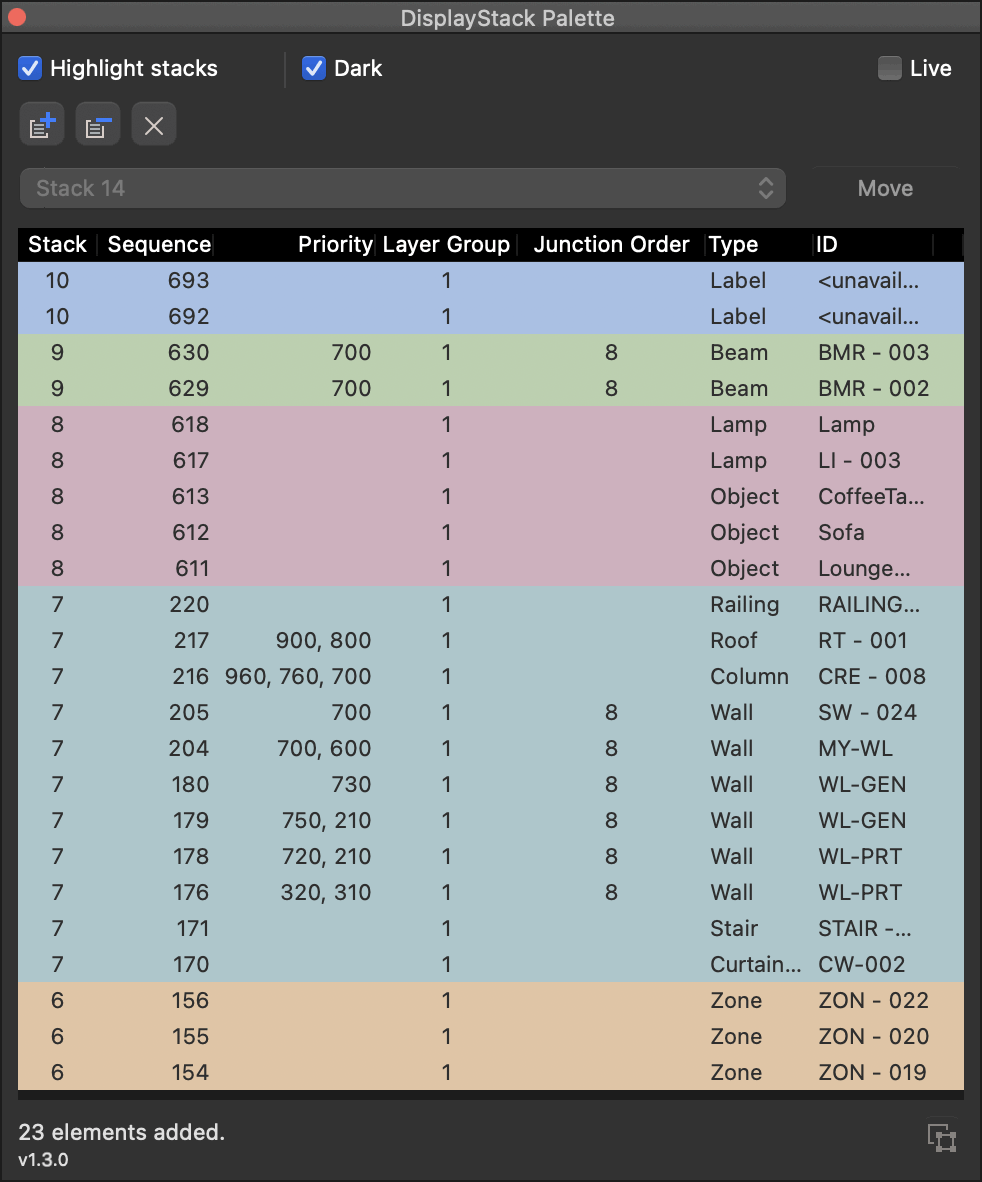

DisplayStack v1.3.0 palette showing Layer Group, Junction Order and Dark mode

See the Layer Intersection Group

The new Layer Group column shows the Layer Intersection Group of each listed element. This makes it easier to check whether elements belong to compatible intersection groups.

Review the Junction Order of Walls and Beams

The new Junction Order column displays the Junction Order of Walls and Beams.

Junction Order becomes important when equal-priority Walls or Beams meet (or form a junction). Seeing it alongside Building Material Priority, Stack and Sequence brings several useful diagnostic values together in one compact view.

Clearer colours in Archicad's dark interface

DisplayStack now includes an updated set of stack colours for Archicad's dark interface.

Use the new Dark option to switch to the dark-mode colour set for both the palette and model highlights.

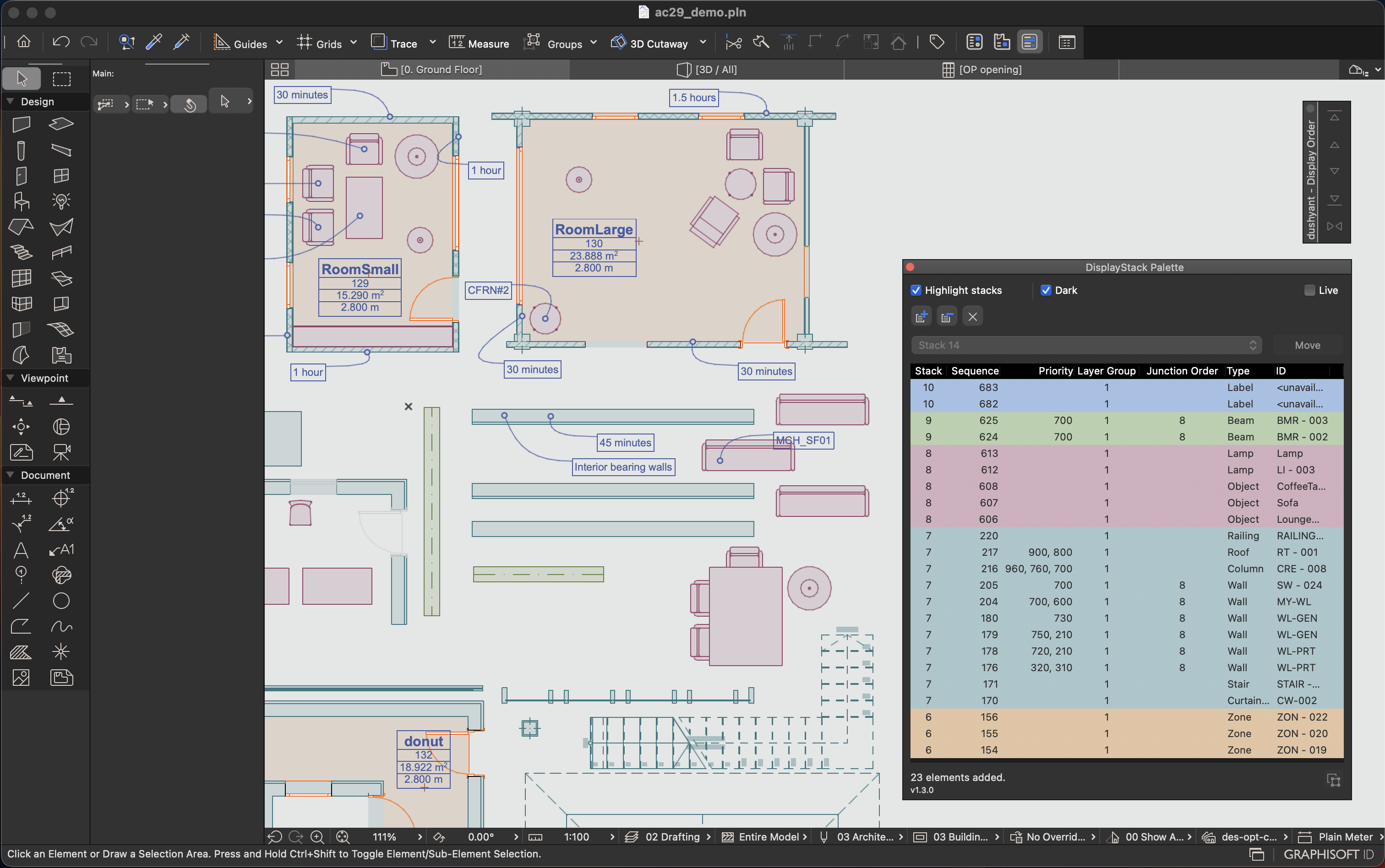

DisplayStack highlighting model elements with the Dark colour option enabled in Archicad

DisplayStack v1.3.0 is available for Archicad 26–29 on Windows and macOS.

Visit DisplayStack for details.
